AM-CRI250 TIP2209 Diesel Fuel Piezo Common Rail Injector Tester for Siemens with AHE Dynamic Lift Travel Measuring Tool
micrometer
Sale price
$60.95
Regular price
$121.95
Skip to product information
SPECIFICATIONS
Brand Name: TANTESTO
Certification: None
Choice: yes
Electronic: No
External Testing Certification: None
Hardware Version: 1.1
Item Height: 7
Item Length: 22
Item Weight: 1.5
Item Width: 15
Model Name: CRI250
Origin: Mainland China
Software Version: 1.1
Voltage: 220

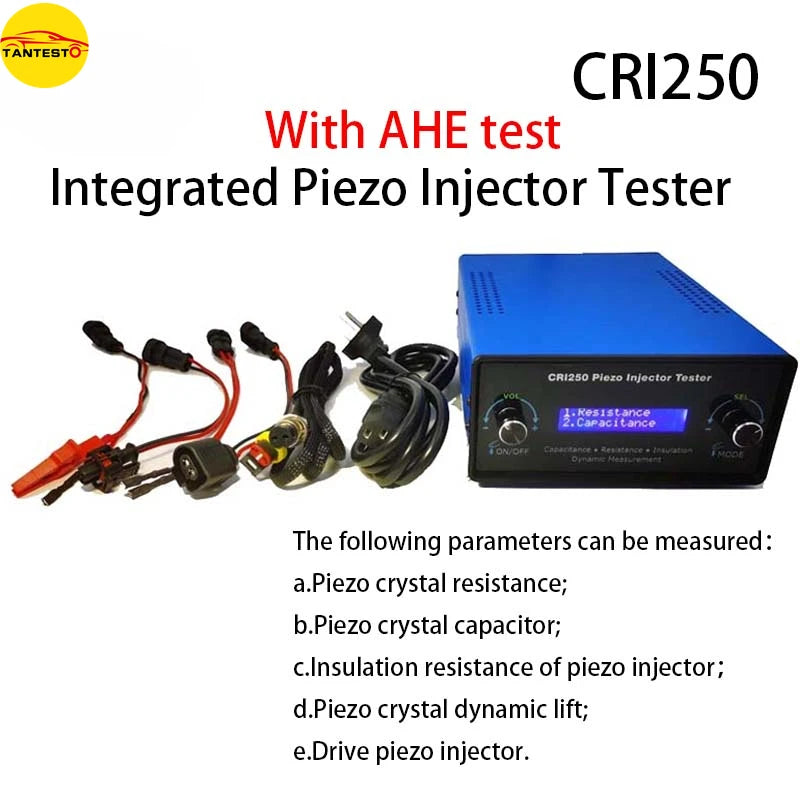

CRI 250 Piezo Injector Tester For Capacitance Resistance Insulation Dynamic Measurement Piezoelectric Injector
Product Description:
CRI 250 piezoelectric injector tester can drive the piezoelectric injector and test the AHE, resistance; Capacitance; Resistance;
1. Piezoelectric crystal resistance;
2. Piezoelectric crystal capacitance;
3. Insulation resistance of piezoelectric oil injector;
4. Dynamic travel of piezoelectric crystal;
5. Drive the piezoelectric oil injector;

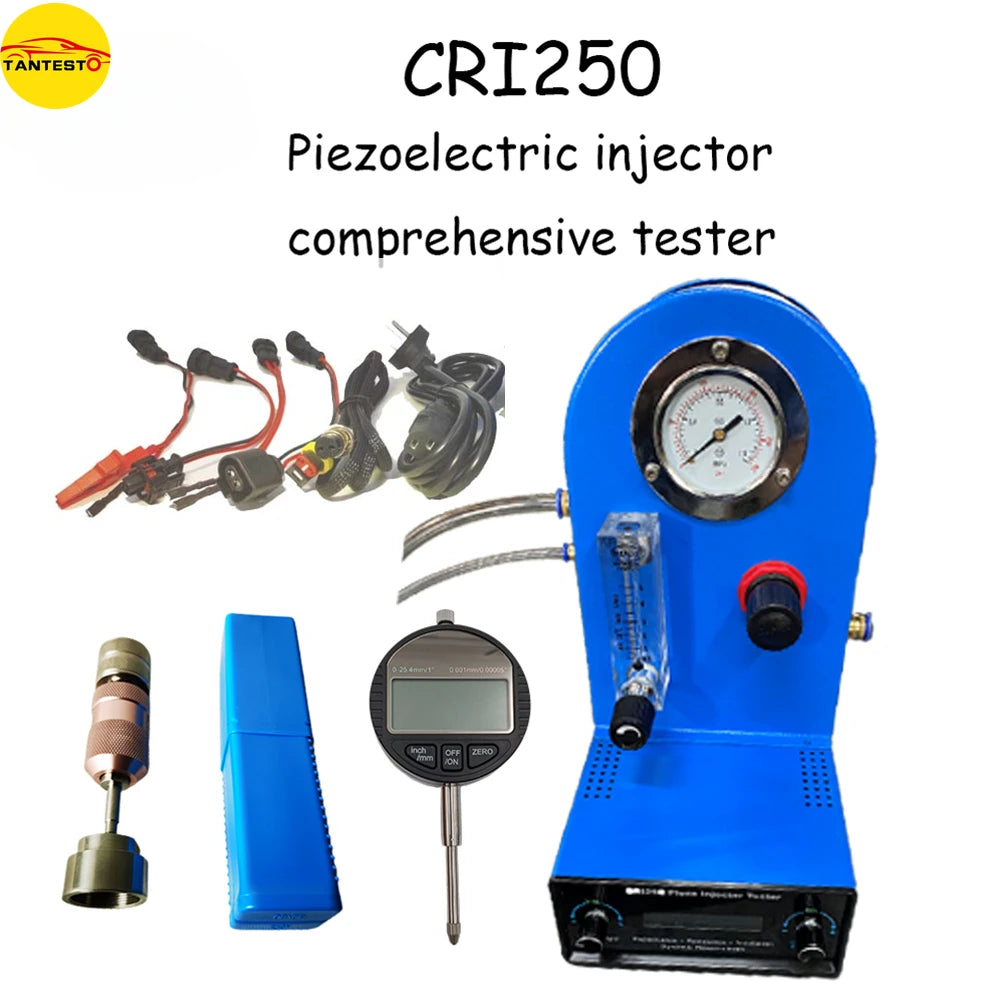

CRI250 Piezo Injector Comprehensive Tester
1.ON/OFF Knob,
a.Press the ON/OFF knob:
Run or stop,
The lower right corner of the screen shows the current status:ON/OFF;
b.Turn the ON/OFF knob left and right:
In mode 1, 3, 4, adjustable voltage value: 0 ～ 178V;
In mode 5, the pulse width can be adjusted; 0 ～ 5000us
2.MODE Knob
1. Press the MODE knob: Enter the submenu, or return to the main menu;
2. In mode 5 rotate the MODE knob left or right to adjust the injection frequency 1 ～ 100Hz;
