SPECIFICATIONS

12V /24V Circuit Tester 7: Digital Electric Circuit Tester

Brand Name: ANCEL

Car Tester Feature 5: Integrated Circuit Tester for Electrical System

Car Tester Feature 6: Circuit Tester Multmeter for power voltage

Car Tester Feature 8: Relay Test

Car Tester Feature 9: TFT Color Display

Certification: CE

Choice: yes

Circuit Tester Feature 1: Circuit Tester 12V /24V

Circuit Tester Feature 2: Car Circuit Tester 2024

Circuit Tester Feature 3: Automotive Circuit Tester for 12V Car/24V Truck

Circuit Tester Feature 4: Auto Circuit Tester with multmeter

High-concerned chemical: None

Item Type: Circuit Tester

Origin: Mainland China

semi_Choice: yes

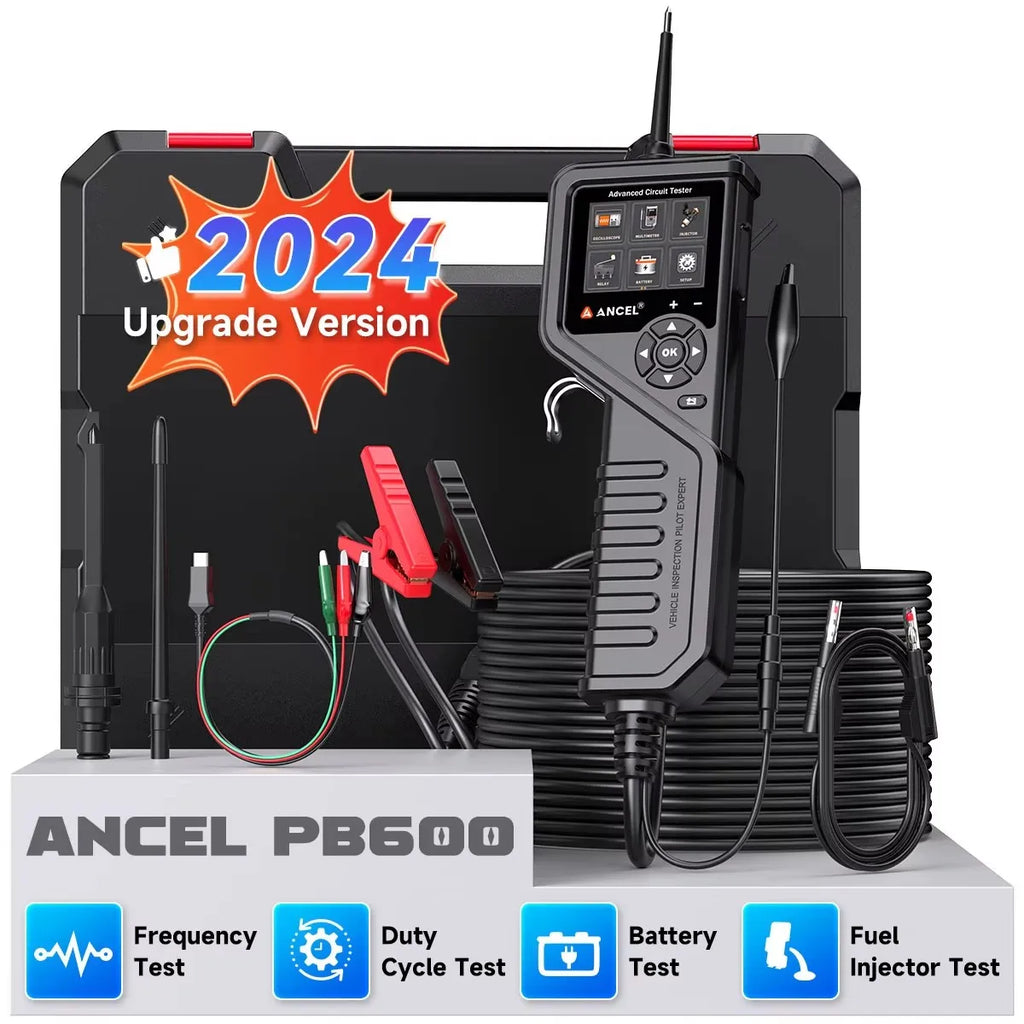

ANCEL PB600 Car Circuit Probe Kit Circuit Tester Rleay Test 12V/24V Electrical Current Voltage Test Auto Battery Inspection Tools

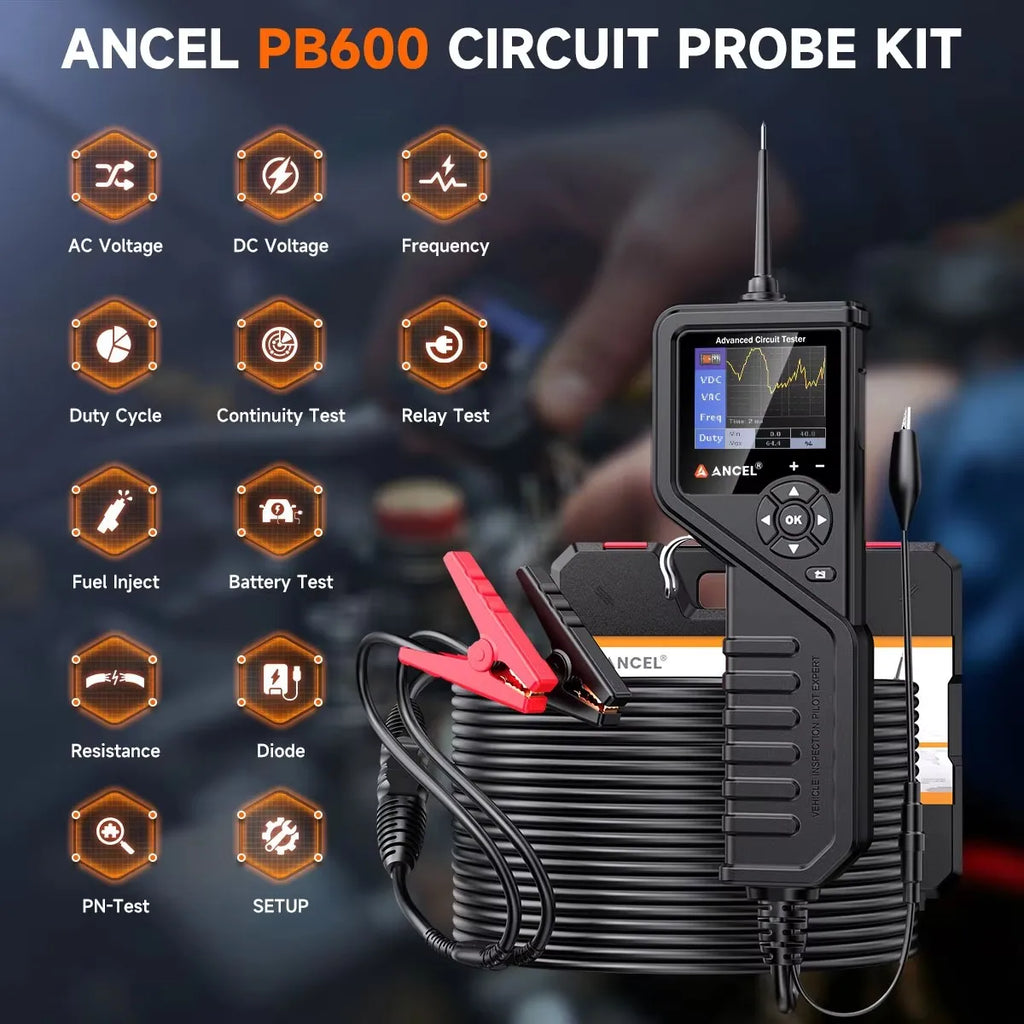

Ancel PB600 Power Scan Kit is the most revolutionary circuit tester to date, working with 12-24 volt sources and providing DC voltage, AC voltage, Frequency, Duty Cycle, Injector Circuit, Resistor and Diode detection functions. Specifically in AC voltage, Frequency, Duty Cycle and Inject mode, the user can switch between waveform display mode and digital display mode by long pressing the mode button. The PowerScan is indeed the ultimate in performance and affordability, allowing the user to check circuits in a single step. An absolute must for any technician looking for a fast and accurate solution for diagnosing electrical systems.

ANCEL PB600 Electrical System Circuit Tester Functions:

✔️ Diagnose 12 ~24V automotive electrical systems swiftly and accurately.

✔️ Show battery voltage reading and help user determine circuit polarity immediately after connecting the KM50 clips to the vehicle battery.

✔️ Test DC Voltage, AC Voltage, Frequency, Duty Cycle, Fuel Injection Circuit, Resistance, and Diode. Especially, in AC Voltage, Frequency, Duty Cycle and Fuel Inject Modes, user can long press the mode button for 3 seconds to switch between Waveform Display Mode and Digital Display Mode.

✔️ Activate electrical components and test their functions without jumper leads – by depressing the rocker switch to conduct a positive or negative battery current to the tip so as to power up electrical components.

✔️ Test bad ground contacts instantly without performing voltage drop tests.

✔️ Help user to follow and locate short circuits without using external fuses.

✔️ Test continuity with the assistance of its auxiliary ground lead.

✔️ The tool is short-circuit protected. If it becomes overloaded, Its internal circuit breaker will trip to protect the instrument from overload.

✔️ When the circuit breaker is tripped, the tool will NOT be able to conduct battery current to the tip even when the rocker switch is pressed; however, all other functions of the tool are still active, which means you can still probe a circuit and observe the voltage reading.

PB600 - Upgrade of PB500

PB600 has Fuel Injector Testing, Frequency Testing, Duty Cycle Testing, and Display Forms: Waveform. These are the features that PB100 does not have.

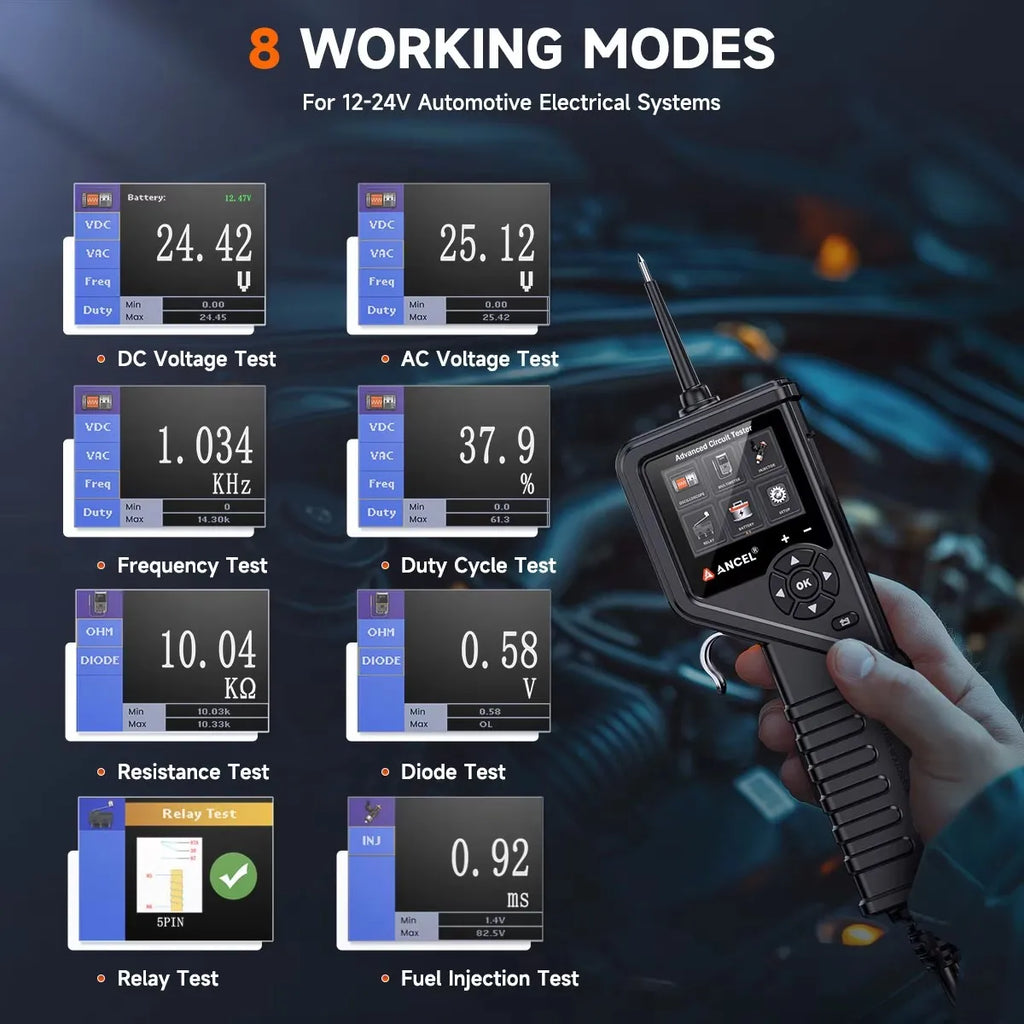

ANCEL PB600 has 8 test modes:

Especially, in AC Voltage, Frequency, Duty Cycle and Fuel Inject Modes, user can long press the mode button to switch between Waveform Display Mode and Digital Display Mode.
