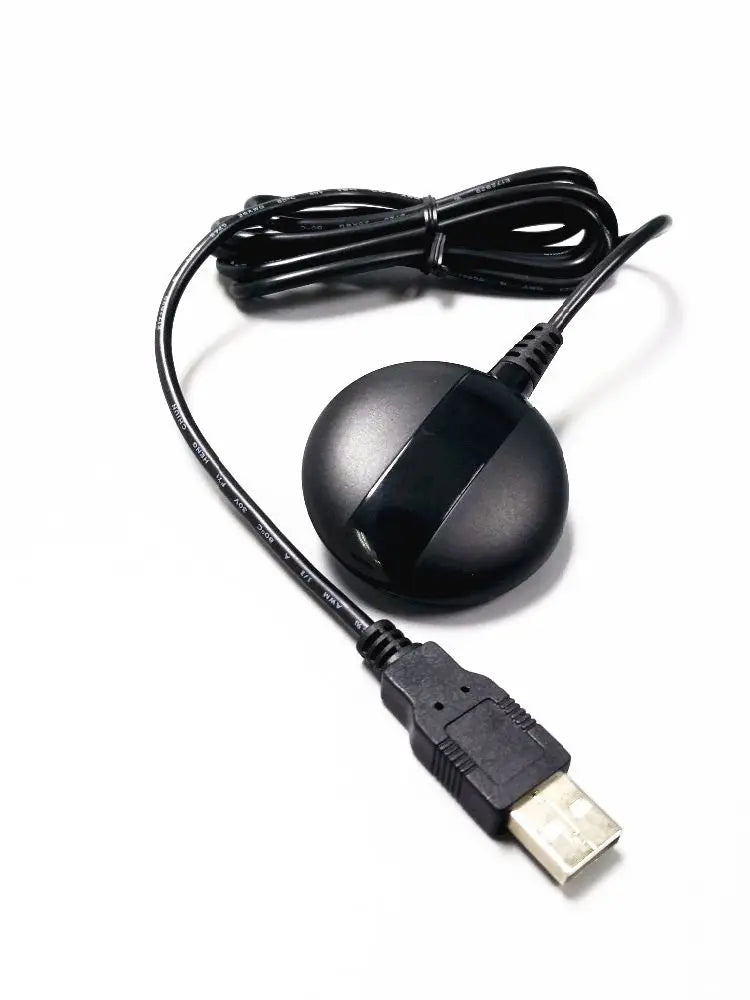

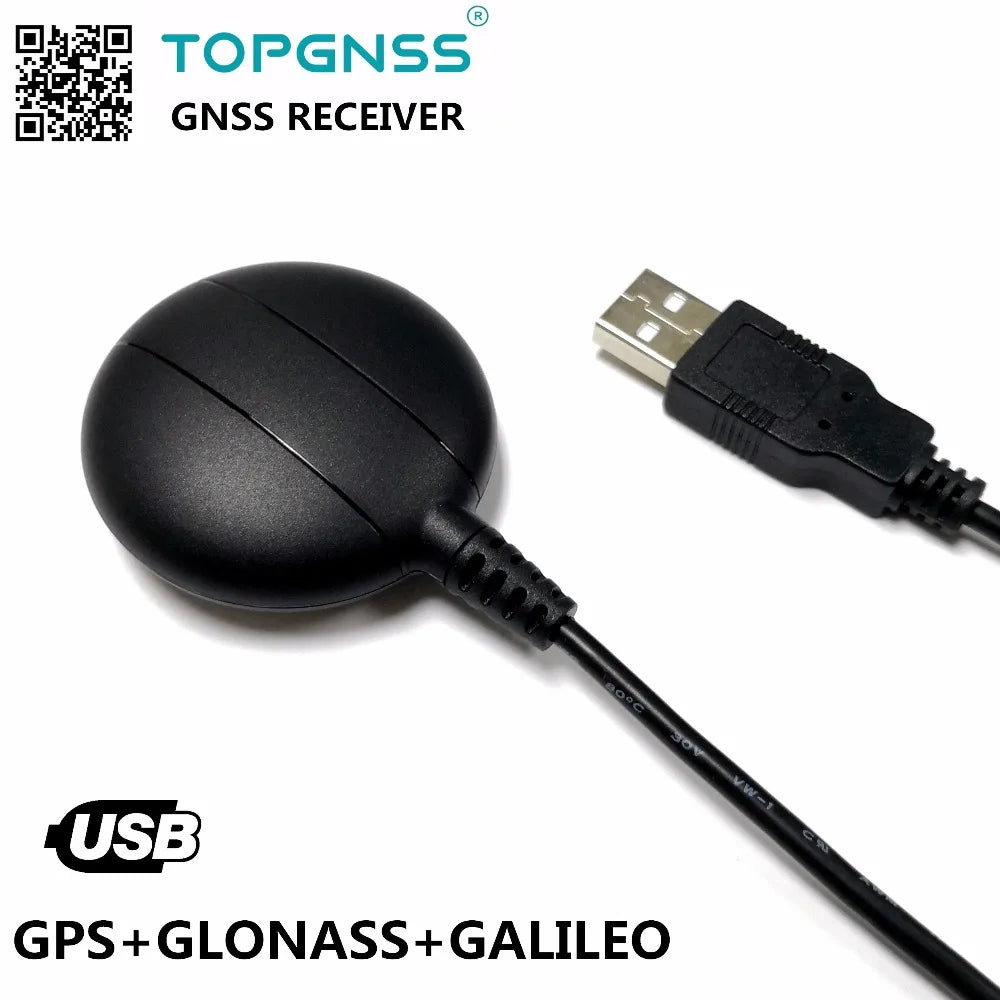

TOPGNSS Industrial application USB GPS GLONASS GALILEO Receiver module antenna GN800 USB GNSS GPS GLONASS GALILEO receiver
army green
Sale price
$41.95
Regular price
$82.95
Skip to product information
SPECIFICATIONS
Baud rate: 9600 (default)
Brand Name: TOPGNSS
Cable length: 3M (default)
Chipset: GNSS multimode chip M8030-KT
Choice: yes

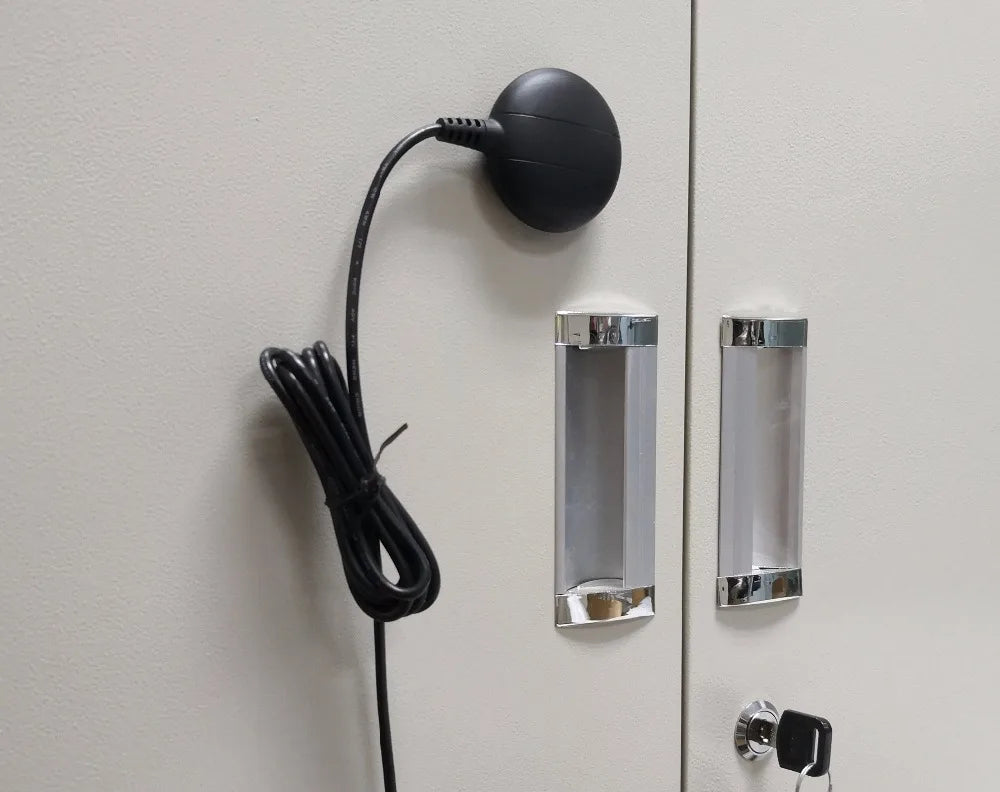

Fixed: Magnet
GPS type: Receiver & Antenna
LED status indication: positioning LED after flashing
Model Name: GN800
Origin: Mainland China
Output: USB protocol
Support: GPS+GLONASS+GALILE0
Waterproof level: IP67
Working voltage: 5V
semi_Choice: yes
TOPGNSS.store sales promotion, Only once a year,
Rare opportunitys，atisfaction, please give us 5 points of evaluation!
Default working mode:
GPS+GLONASS+GALILEO
(Optional settings: GPS+GLONASS+GALILEO)
Friendly reminder: The receiver shell has two specifications of mirror surface and frosted surface. The default shipment is the mirror shell gps receiver. If you have special requirements, please leave a message on the order.
Applications
Packing list: gps receiver 1PCS
Track record of data acquisition
Automatic vehicle location
Driving recorder
Navigation
GPS clock and digital camera
Child/elderly/personal locator and security system
Features
Multi-satellite positioning systems support
GPS/QZSS/GLONASS/GALILEO(GNSS200L)
GPS/QZSS/Beidou
Based on 8030 low power single chip
Sensitivity
Acquisition: -148dBm
Tracking: -167dBm
Low power: 40mA at continuous tracking
SBAS (WAAS, EGNOS, MSAS) support
Higher update rate option (default 1Hz)
RTCM 2.3 4.X support
A-GPS support, OMA SUPL/3GPP TS25.171 (GSM/UMTS) compliant
Easy to use: built-in patch 25*25*4mm antenna
Backup battery support for faster position fix
LED for position fix indication
Windows location sensor support
You encountered in the use of any questions or you need to buy more quantity, please contact with us
We can provide professional OEM or ODM services
